page10s.jpg (35231 bytes) Vulcan Patent Duplex Pneumatic Riveter page12s.jpg (57165 bytes)
And now the Vulcan Patent Duplex Pneumatic Riveter

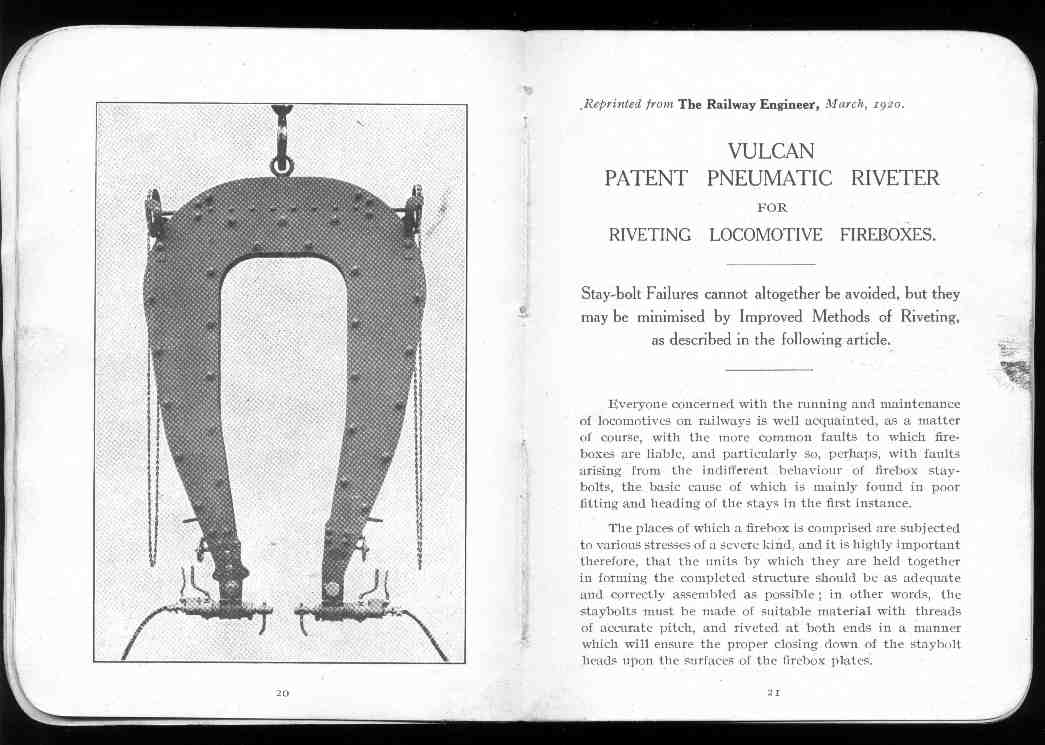

 The Riveting of Firebox Staybolts

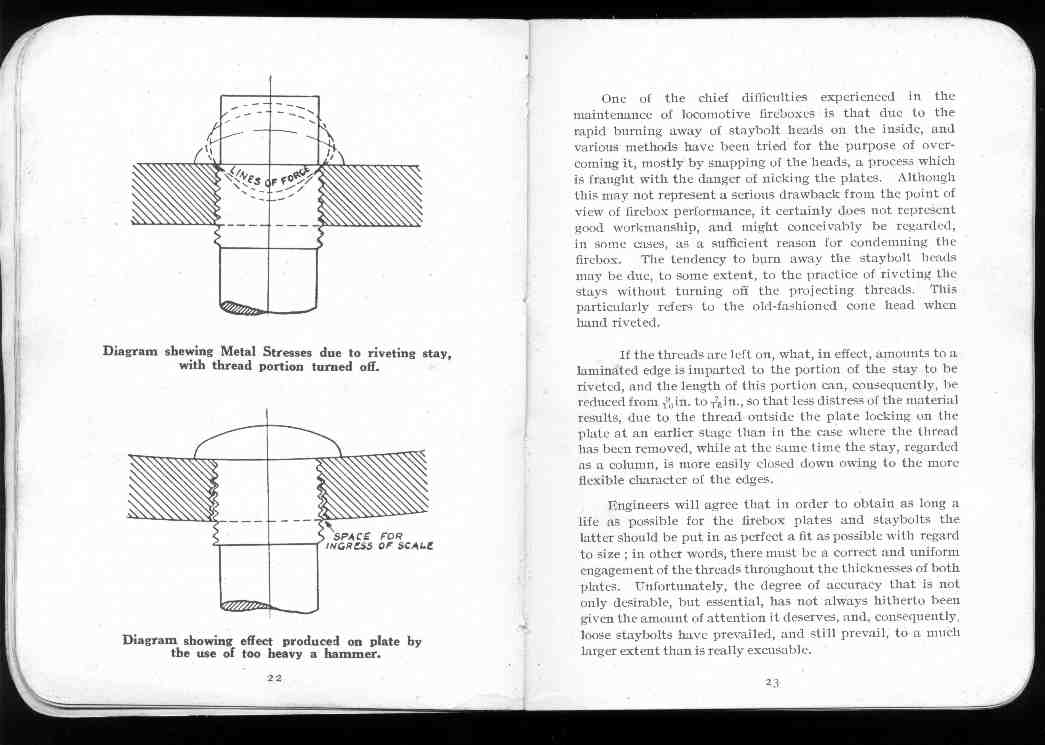

 Diagram showing metal stresses
Causes of ill fitting staybolts Vulcan pneumatic riveters in the boiler shop

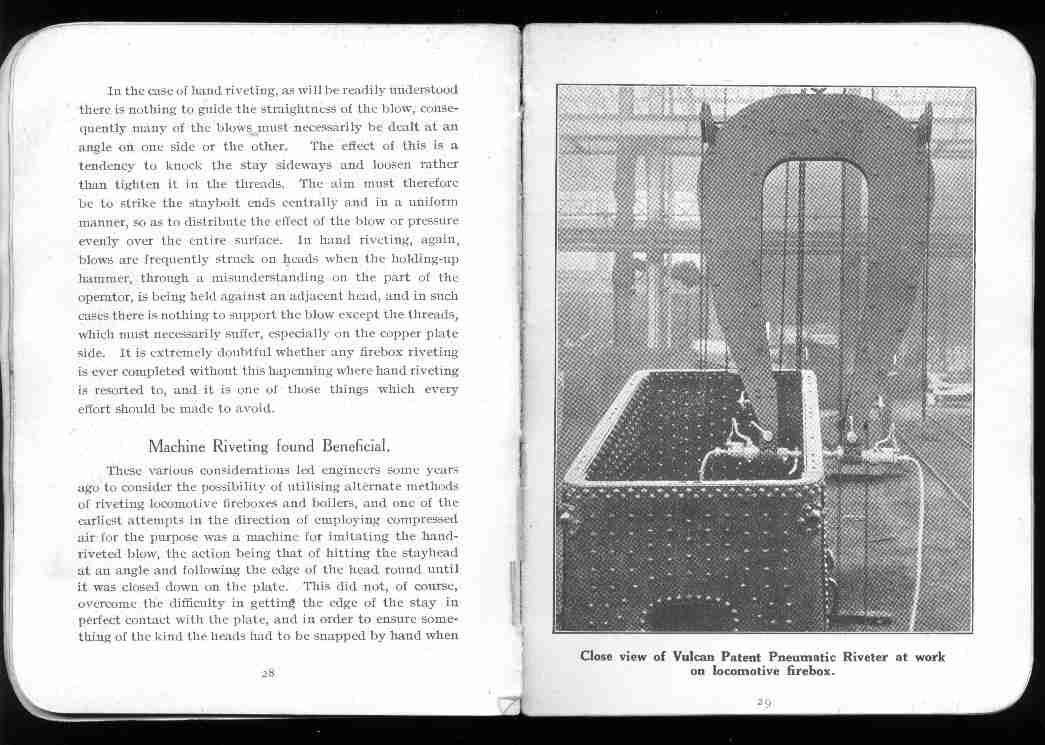

Riveting a locomotive firebox
Causes of ill fitting staybolts

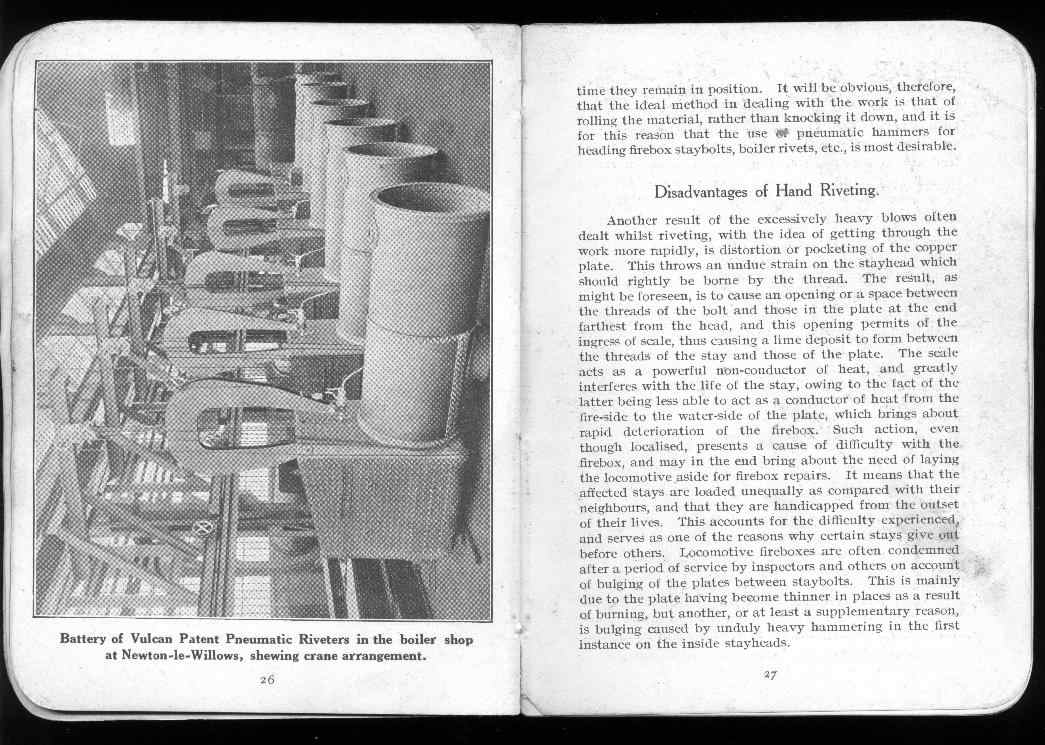

 Vulcan pneumatic riveters in the boiler shop



 Riveting a locomotive firebox

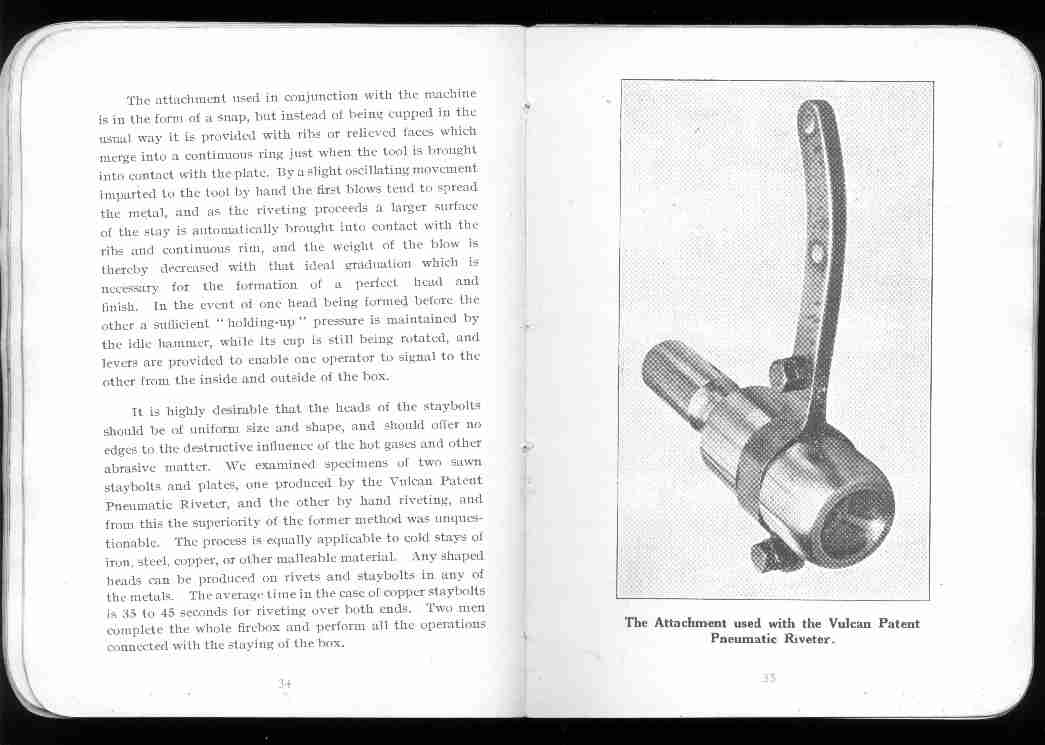

Pneumatic riveting tool attachment

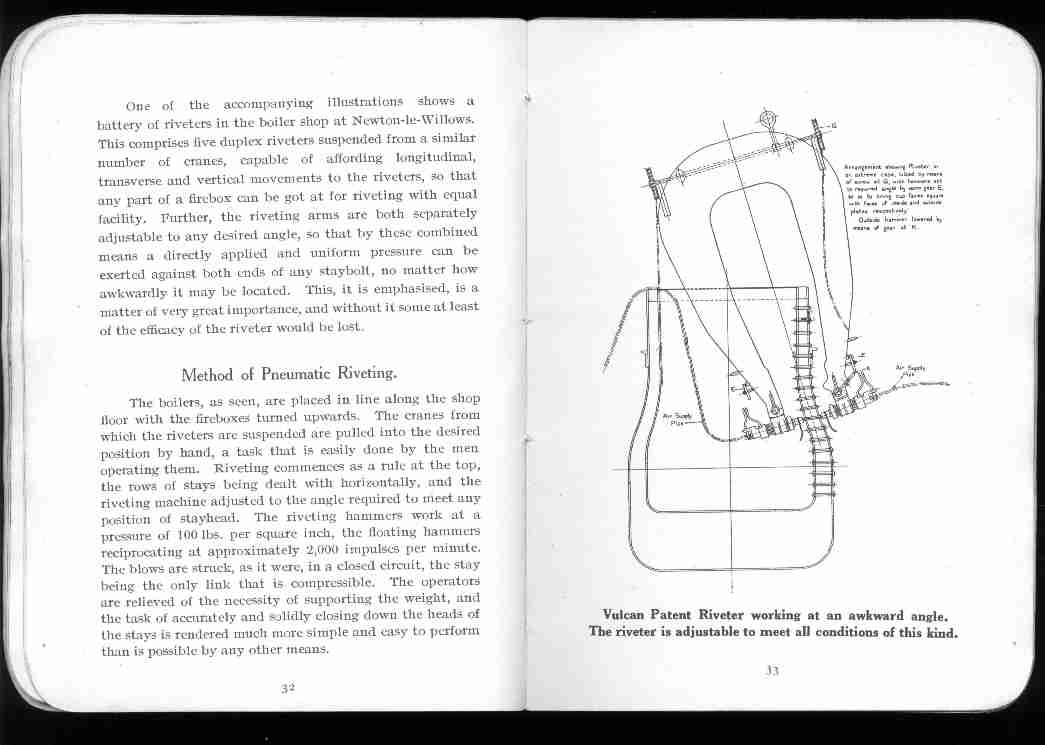

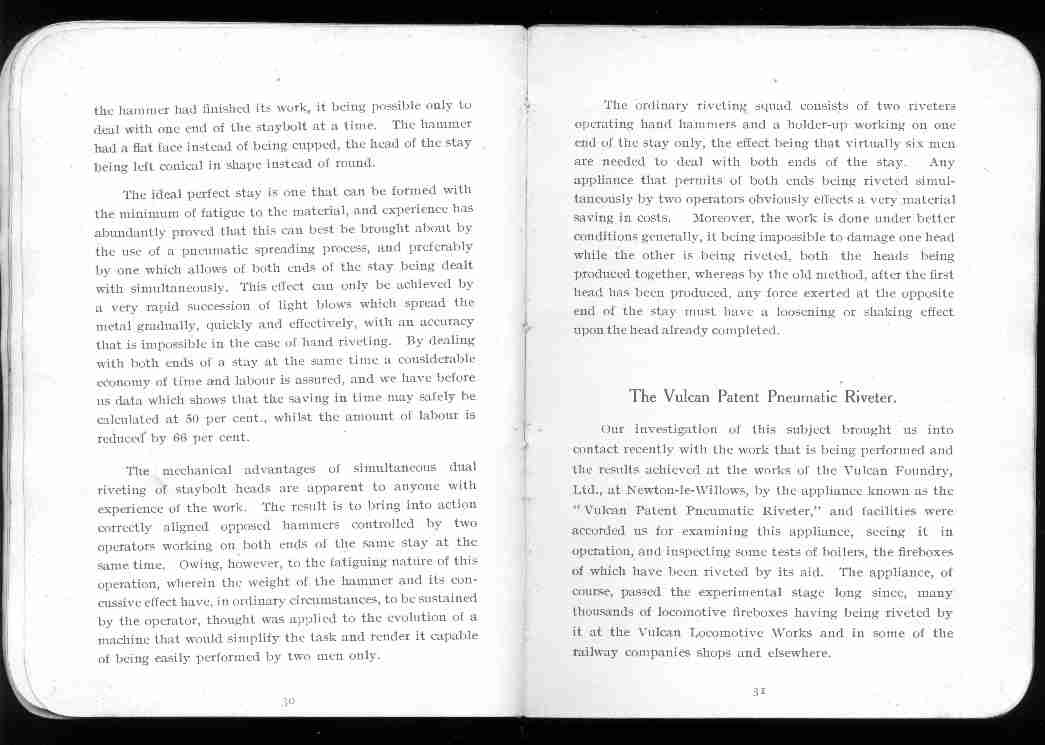

Method of Pneumatic Riveting
 Pneumatic riveting tool attachment
